| MOQ: | 5 chiếc |
| giá bán: | negotiable |
| Phương thức thanh toán: | L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 500 chiếc mỗi ngày |
1-18GHz 90° Hybrid Coupler
| Part Number | VN-HC90°-1G-18G-SMAF |
| Operating Frequency ( MHz ) | 1000-18000 |
| Phase Difference ( Ohm ) | 90° |
| Nominal Split (dB) | 3.01 |
| Insertion Loss (dB) | ≤2.0 |
| VSWR | ≤1.8:1 |
| Amplitude Balance(dB) | ≤±1.0 |
| Phase Balance(°) | ≤±10 |
| Isolation(dB) | ≥16 |
| Impedance | 50 |
| Net Weight(KG) | 0.09 |
| Connectors | SMA-F |
| Power (Watt, max) | 20 |

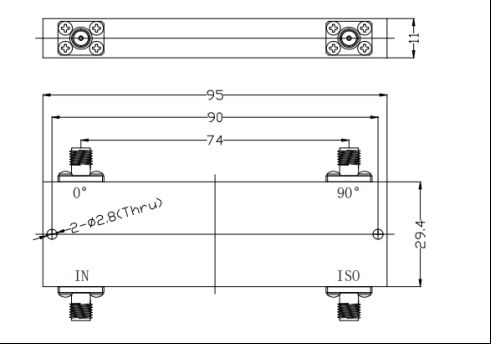

| Dimension (mm)(L×W×H, excl connector) | 95*29.4*11 |
| ROHS Compliance | Yes |
|
|
