| MOQ: | 5 chiếc |
| giá bán: | negotiable |
| Phương thức thanh toán: | D/A, L/C, D/P, T/T |
| Supply Capacity: | 1500 chiếc mỗi ngày |
698-2700MHz 2Way SMA Female Wilkinson Splitter
The Wilkinson Power Splitter is a fundamental passive radio-frequency (RF) component.
Its primary role is to split an input signal into two or more output signals with equal phase and amplitude,
while providing high isolation between the output ports. In mobile communications,
the Wilkinson Splitter is critical for efficiently distributing RF power across multiple
paths without degrading signal integrity.
| Part Number | VN-PD-0727-SMA2 |
| Operating Frequency ( MHz ) | 698-2700 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.25 |
| Isolation(dB) | 20 |
| Split Loss (dB) | ≤3.0 |
| Insert loss(dB) | ≤0.4 |
| Application | Indoor |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | SMA Female |
| Handling Power (Watt, max) | IN to OUT 50W/0UT to IN 2W |
| Peak Power (Watt, max) | 200 |

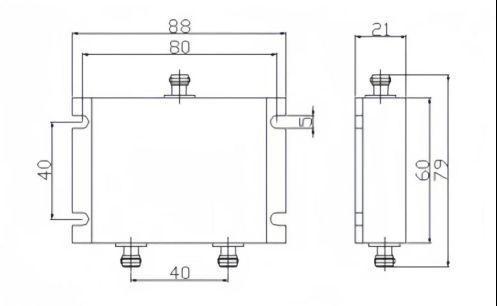

| Dimension (mm)(L×W×H, excl connector) | 80*40*21 |
| ROHS Compliance | Yes |
|
|
